Ac220v Vacuum Gate Valve - RVP Series Oil Rotary Vacuum Pump – Super Q Detail:
The RVP series pumps are compact, low noise, two-stage, oil-sealed, high-vacuum pumps designed for reliable, long-term operation in both laboratory and industrial environments. A four-pole three-phase motor provides direct-drive through a flexible coupling.
It can be used for electric vacuum container manufacturing, vacuum welding, printing, blister, refrigeration equipment maintenance and equipment matching and laboratory.
Widely used in food, scientific research, medical, electronic, chemical, pharmaceutical, college laboratories.
Technical Data:
| Model | RVP10 | RVP16 | RVP24 | |
| Pumping speedm3/h | 50Hz | 9.9 | 14.4 | 20 |
| 60Hz | 12 | 17.4 | 24 | |
| Ultimate pressurePa | GP open | 5 | ||
| GP close | 0.5 | |||
| Motor kW | 380V(3phases) | 0.4(4poles) | 0.55(4poles) | 0.75(4poles) |
| 220V(single phase) | ||||
| Inlet | KF25 | |||
| Outlet | G1 | |||
| Vacuum pump oil | RVP68 | |||
| Oil capacity L | 1.1 | 1.2 | 1～1.5 | |
| Weight kg | 25 | 27 | 32 | |
| Model | RVP30 | RVP40 | RVP60 | RVP90 | |
| Pumping speedm3/h | 50Hz | 30 | 40 | 60 | 90 |
| 60Hz | 36 | 48 | 72 | 108 | |
| Ultimate pressurePa | GP open | 3 | |||
| GP close | 0.5 | ||||
| Motor kW | 3phases4poles | 1.5 | 1.5 | 2.2 | 3.7 |
| Inlet | VG40 | VG50 | |||
| Outlet | M50X1.5 | ||||
| Vacuum pump oil | RVP68 | ||||
| Oil capacity L | 1.2～2.8 | 2.5～4.2 | |||
| Weight kg | 63 | 65 | 87 | 101 | |

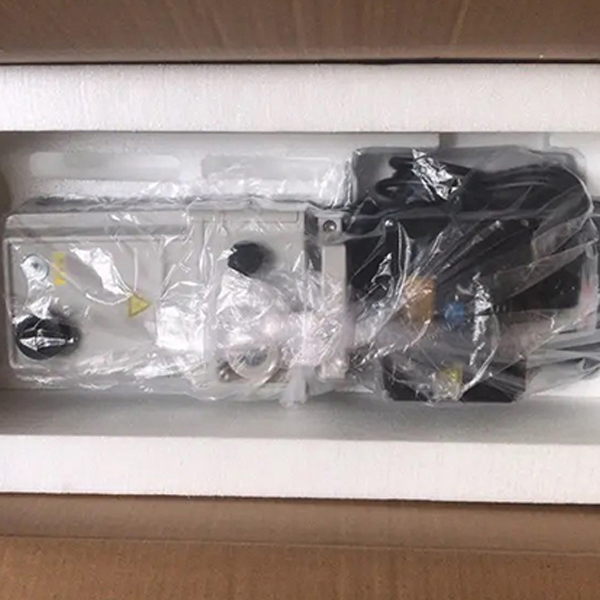

Product detail pictures:
