CF Reducing adaptor-fixed CF flange high vacuum concentric reducer connector pipe fittings conical reducer

Short Description:


Product Detail

Product Tags

CF-直通型转换接头(减小型)详情_01 CF-直通型转换接头(减小型)详情_02 CF-直通型转换接头(减小型)详情_03 CF-直通型转换接头(减小型)详情_04

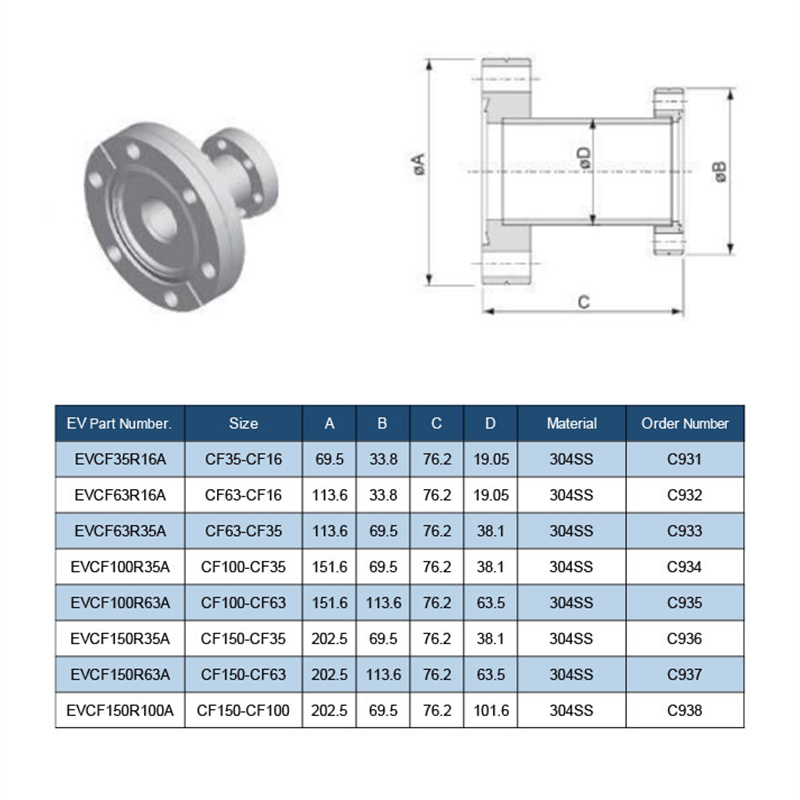

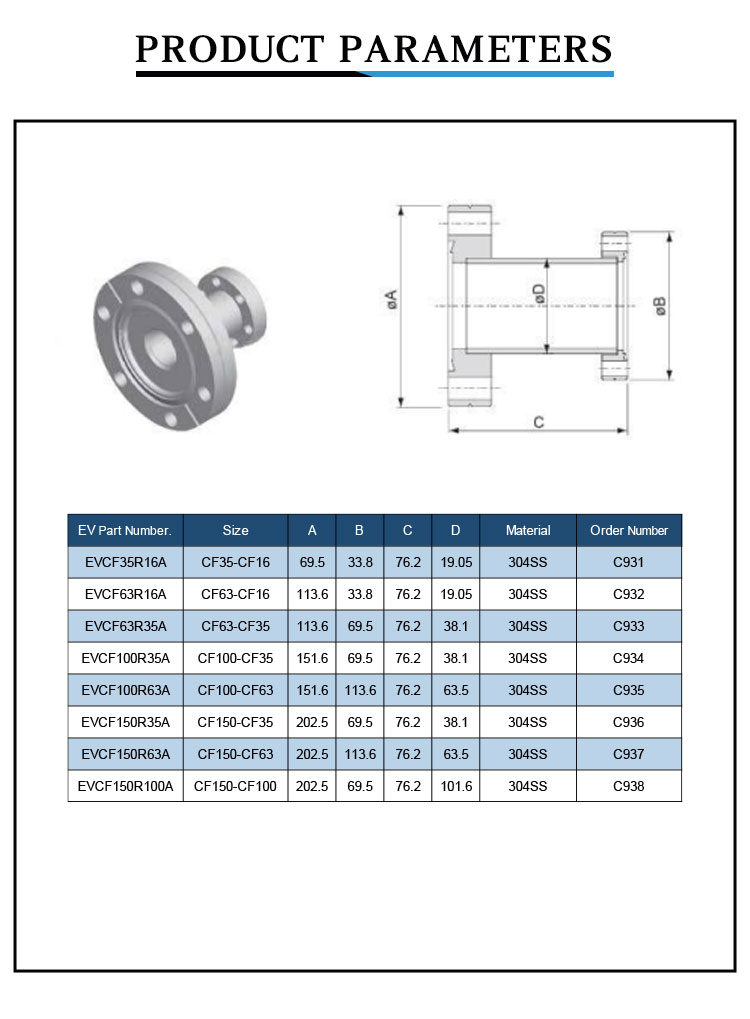

EV Part Number. Size

A

B

C

D

Material

Order Number

EVCF35R16A CF35-CF16

69.5

33.8

76.2

19.05

304SS

C931

EVCF63R16A CF63-CF16

113.6

33.8

76.2

19.05

304SS

C932

EVCF63R35A CF63-CF35

113.6

69.5

76.2

38.1

304SS

C933

EVCF100R35A CF100-CF35

151.6

69.5

76.2

38.1

304SS

C934

EVCF100R63A CF100-CF63

151.6

113.6

76.2

63.5

304SS

C935

EVCF150R35A CF150-CF35

202.5

69.5

76.2

38.1

304SS

C936

EVCF150R63A CF150-CF63

202.5

113.6

76.2

63.5

304SS

C937

EVCF150R100A CF150-CF100

202.5

69.5

76.2

101.6

304SS

C938
