High quality vacuum CF Copper Gasket
CF Copper Gasket
CF flange seal is made of metal gasket, not easy to penetrate gas and withstand long periods of high heat. (OFHC metal oxygen free copper gasket: 400oC under; Viton gasket: 180oC under). Widely used in high vacuum and ultra high vacuum fields.
For systems requiring frequent high temperature baking, it is recommended to use OFHC+Silver plated gasket or OFHC annealed gaskets.

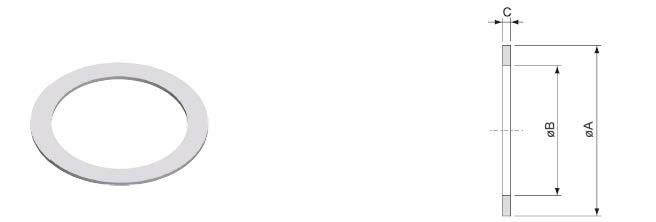

| EVPartNumber. | Size | A | B | C | PackQty. | Material | Order Number |
| EVCG16CF | CF16 | 21.3 | 16.2 | 2 | 10 | Copper | C806 |
| EVCG25CF | CF25 | 34.9 | 25.6 | 2 | 10 | Copper | C807 |
| EVCG35CF | CF35 | 48.1 | 36.8 | 2 | 10 | Copper | C808 |
| EVCG50CF | CF50 | 61.6 | 52 | 2 | 10 | Copper | C809 |
| EVCG63CF | CF63 | 82.4 | 63.6 | 2 | 10 | Copper | C810 |
| EVCG80CF | CF80 | 99 | 82 | 2 | 10 | Copper | C811 |
| EVCG100CF | CF100 | 120.5 | 101.7 | 2 | 10 | Copper | C812 |
| EVCG150CF | CF150 | 171.3 | 152.5 | 2 | 5 | Copper | C813 |
| EVCG200CF | CF200 | 222.1 | 203.3 | 2 | 5 | Copper | C814 |
| EVCG250CF | CF250 | 273.1 | 254 | 2 | 5 | Copper | C815 |
