01 Product Description

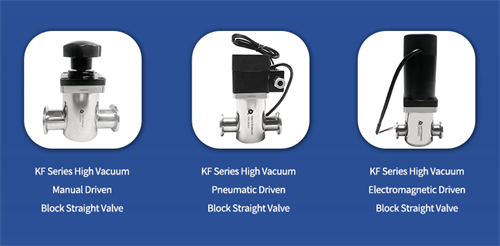

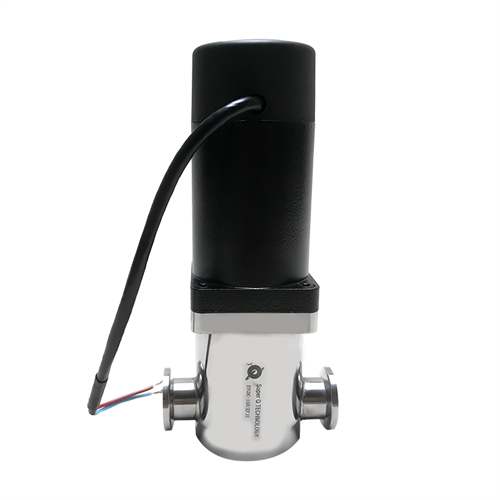

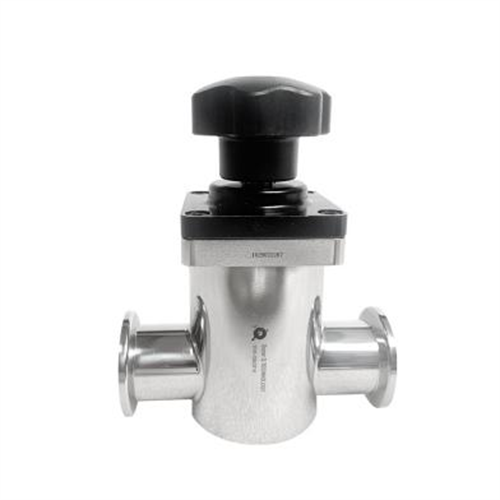

This series of valves is divided into manual, pneumatic and electromagnetic driven types. Features with smooth operation, small size, reliable use, good sealing performance and long service life. It is one of the preferred valves for vacuum equipment. The valve respectively rotates the handle, the compressed gas pushes the cylinder and the coil energizes to generate electromagnetic force, and the power is connected to the valve plate through the mechanism, and drives the valve plate to open and close. Applicable medium can be pure air and non-corrosive gas.
02 Features
Standard modular design, easy to replace and repair ;
Easy to clean and design;
Small size;
Saving design for Electromagnetic valves.

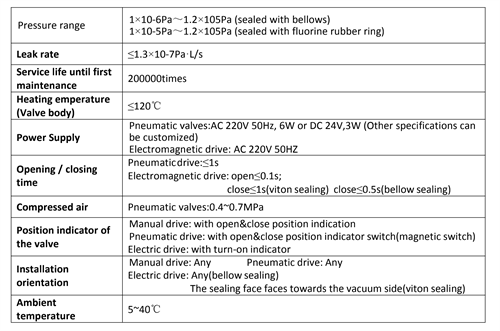

03 Technical Parameters

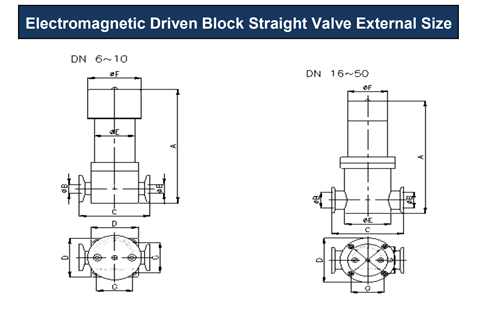

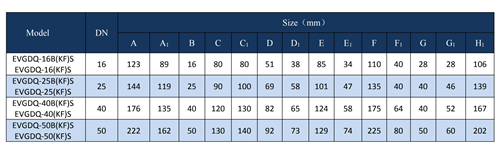

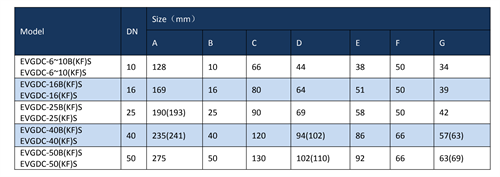

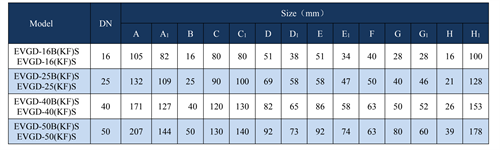

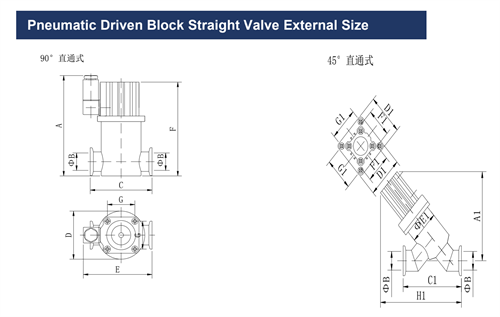

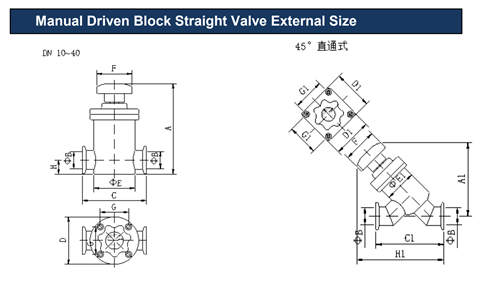

04 External Size
Super Q Technology
KF series High Vacuum Block Straight Valves
