Lithium battery rotary vane vacuum pump

Product Description

- Lithium Battery Rotary Vane Vacuum Pump is a fundamental equipment used for achieving vacuum through suction.

- It supports two power supply modes: DC 18V lithium battery and AC 100-240V, providing excellent portability.

- Suitable for industries such as refrigeration, vacuum packaging, thermoforming, high vacuum equipment, gas analysis, and air conditioning maintenance.

- Product features include integrated cylinder structure design, forced oil pump lubrication, brushless DC motor, and safer, more convenient use with lithium batteries.

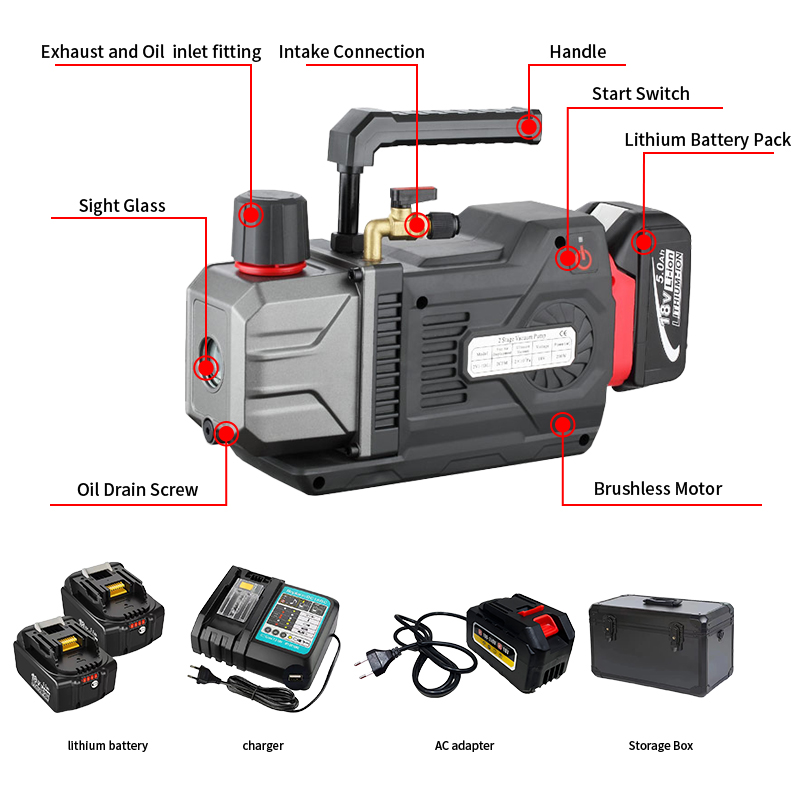

 Product Components

- Includes AC adapter, lithium battery charger, and storage box.

Technical Specifications

- VI-1DLi (Single Stage Rotary Vane):

- Voltage: 18V-5.0Ah

- Ultimate Vacuum: 2×10^(-2) Pa

- Flow Rate: 2CFM

- Oil Capacity: 250 ml

- Dimensions: 274×92×196 mm

- Weight: 3.2 Kg

- Inlet Diameter: 1/4″ SAE

- 2VI-1DLi (Two Stage Rotary Vane):

- Voltage: 18V-5.0Ah

- Ultimate Vacuum: 2×10^(-2) Pa

- Flow Rate: 1L/s (3.6 m³/h)

- Oil Capacity: 200 ml

- Dimensions and Weight same as VI-1DLi

- Inlet Diameter: 1/4″ SAE

 AC Adapter Specifications

- Input: 100-240V

- Frequency: 50-60Hz

- Power: 180W

- Output: 18V voltage, 2A current

- Weight: Approximately 590g

- Dimensions: 189×155×81 mm

Applications

- Suitable for refrigerant (including CFC,HCFC,and HFC such as R12/R22/R32/R410a/R134a/1234YF) air conditioning maintenance, printing machinery, vacuum packaging, gas analysis, thermoforming, etc.

Product Advantages

- Compact design for easy portability.

- Spark-free design, lighter, smaller, and more convenient.

- Enhanced safety and convenience with lithium battery usage.
