Stainless steel conflat CF Bored Flange

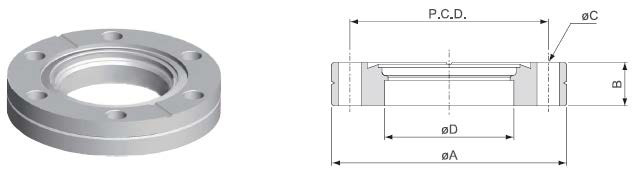

CF Bored Flange
| EVPartNumber. | Size | A | B | C*No. | D | P.C.D | Material | Order Number |
| EVBOF16CF | CF16 | 34 | 7.3 | 4.3*6 | 18 | 27 | 304SS | C711 |
| EVBOF25CF | CF25 | 54 | 10.5 | 6.7*6 | 28 | 43 | 304SS | C712 |
| EVBOF35-25CF | CF35 | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | 304SS | C713 |
| EVBOF35-38CF | CF35 | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | 304SS | C714 |
| EVBOF35-42CF | CF35 | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | 304SS | C715 |
| EVBOF50CF | CF50 | 86 | 16 | 8.4*8 | 53 | 72.4 | 304SS | C716 |
| EVBOF63-51CF | CF63 | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | 304SS | C717 |
| EVBOF63-63CF | CF63 | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | 304SS | C718 |
| EVBOF80CF | CF80 | 130 | 18 | 8.4*16 | 85 | 110 | 304SS | C719 |
| EVBOF100-102CF | CF100 | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | 304SS | C720 |
| EVBOF150-153CF | CF150 | 202.5 | 22 | 8.4*20 | 153.1 | 181 | 304SS | C721 |
| EVBOF200-204CF | CF200 | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | 304SS | C722 |
| EVBOF250-255CF | CF250 | 304 | 28.5 | 8.4*32 | 255 | 284 | 304SS | C723 |
| EVBOF275-255CF | CF275 | 336.5 | 28.5 | 10.3*30 | 255 | 306.5 | 304SS | C724 |
| EVBOF300-305CF | CF300 | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | 304SS | C725 |
| EVBOF35-25-316CF | CF35 | 69.5 | 12.7 | 6.7*6 | 25.6 | 58.7 | 316SS | C726 |
| EVBOF35-38-316CF | CF35 | 69.5 | 12.7 | 6.7*6 | 38.3 | 58.7 | 316SS | C727 |
| EVBOF35-42-316CF | CF35 | 69.5 | 12.7 | 6.7*6 | 42.9 | 58.7 | 316SS | C728 |
| EVBOF63-51-316CF | CF63 | 113.6 | 18 | 8.4*8 | 51.1 | 92.1 | 316SS | C729 |
| EVBOF63-63-316CF | CF63 | 113.6 | 18 | 8.4*8 | 63.7 | 92.1 | 316SS | C730 |
| EVBOF100-102-316CF | CF100 | 151.6 | 20 | 8.4*16 | 101.8 | 130.3 | 316SS | C731 |
| EVBOF150-153-316CF | CF150 | 202.5 | 22 | 8.4*20 | 153.1 | 181 | 316SS | C732 |
| EVBOF200-204-316CF | CF200 | 253.2 | 24.7 | 8.4*24 | 203.7 | 231.8 | 316SS | C733 |
| EVBOF250-255-316CF | CF250 | 304 | 28.5 | 8.4*32 | 255 | 284 | 316SS | C734 |
| EVBOF275-255-316CF | CF275 | 336.5 | 28.5 | 10.3*30 | 255 | 306.5 | 316SS | C735 |
| EVBOF300-305-316CF | CF300 | 355.6 | 28.5 | 10.3*30 | 305.4 | 325.7 | 316SS | C736 |
CF Bored Flange
Nonrotatable-Tapped Bolt Holes
| EV Part Number. |
Size |
A |
B |
C*No. |
D |
P.C.D |
Material |
Order Number |
| EVBOFT35-25CF |
CF35 |
69.5 |
12.7 |
M6*6 |
25.6 |
58.7 |
304SS |
C737 |
| EVBOFT35-38CF |
CF35 |
69.5 |
12.7 |
M6*6 |
38.3 |
58.7 |
304SS |
C738 |
| EVBOFT35-42CF |
CF35 |
69.5 |
12.7 |
M6*6 |
42.9 |
58.7 |
304SS |
C739 |
| EVBOFT63-51CF |
CF63 |
113.6 |
18 |
M8*8 |
51.1 |
92.1 |
304SS |
C740 |
| EVBOFT63-63CF |
CF63 |
113.6 |
18 |
M8*8 |
63.7 |
92.1 |
304SS |
C741 |
| EVBOFT100-102CF |
CF100 |
151.6 |
20 |
M8*16 |
101.8 |
130.3 |
304SS |
C742 |
| EVBOFT150-153CF |
CF150 |
202.5 |
22 |
M8*20 |
153.1 |
181 |
304SS |
C743 |
| EVBOFT200-204CF |
CF200 |
253.2 |
24.7 |
M8*24 |
203.7 |
231.8 |
304SS |
C744 |
| EVBOFT250-255CF |
CF250 |
304 |
28.5 |
M8*32 |
255 |
284 |
304SS |
C745 |
| EVBOFT275-255CF |
CF275 |
336.5 |
28.5 |
M10*30 |
255 |
306.5 |
304SS |
C746 |
| EVBOFT300-305CF |
CF300 |
355.6 |
28.5 |
M10*30 |
305.4 |
325.7 |
304SS |
C747 |
| EVBOFT35-25-316CF |
CF35 |
69.5 |
12.7 |
M6*6 |
25.6 |
58.7 |
316SS |
C748 |
| EVBOFT35-38-316CF |
CF35 |
69.5 |
12.7 |
M6*6 |
38.3 |
58.7 |
316SS |
C749 |
| EVBOFT35-42-316CF |
CF35 |
69.5 |
12.7 |
M6*6 |
42.9 |
58.7 |
316SS |
C750 |
| EVBOFT63-51-316CF |
CF63 |
113.6 |
18 |
M8*8 |
51.1 |
92.1 |
316SS |
C751 |
| EVBOFT63-63-316CF |
CF63 |
113.6 |
18 |
M8*8 |
63.7 |
92.1 |
316SS |
C752 |
| EVBOFT100-102-316CF |
CF100 |
151.6 |
20 |
M8*16 |
101.8 |
130.3 |
316SS |
C753 |
| EVBOFT150-153-316CF |
CF150 |
202.5 |
22 |
M8*20 |
153.1 |
181 |
316SS |
C754 |
| EVBOFT200-204-316CF |
CF200 |
253.2 |
24.7 |
M8*24 |
203.7 |
231.8 |
316SS |
C755 |
| EVBOFT250-255-316CF |
CF250 |
304 |
28.5 |
M8*32 |
255 |
284 |
316SS |
C756 |
| EVBOFT275-255-316CF |
CF275 |
336.5 |
28.5 |
M10*30 |
255 |
306.5 |
316SS |
C757 |
| EVBOFT300-305-316CF |
CF300 |
355.6 |
28.5 |
M10*30 |
305.4 |
325.7 |
316SS |
C758 |
