SV Series Single-stage Rotary Vane oil-sealed Vacuum Pump

Short Description:

The SV series vacuum pump is a single-stage rotary vane oil-sealed vacuum pump suitable for low and medium vacuum applications, mainly used to remove air and other dry gases. It is one of the main equipment for low and medium vacuum, it can be used alone or as a fore pump of other vacuum pumps.

Send email to us

Product Detail

Product Tags

Techinical Parameters

Model	SV-040	SV-063	SV-100
Rated pumping speed(m³/h)	40	63	100
Ultimate pressure(mbar)	0.1-0.5	0.1-0.5	0.1-0.5
Noise(dB(A))	64	65	66
Operating temperature(℃)	83	84	85
Oil consumption(L)	1.5	2	2
Water vapor allowable pressure(mbar)	40	40	40
Water vapor removal rate(kg/h)	0.6	1	1.6
Air inlet(inch)	Rp 1-1/4"	Rp 1-1/4"	Rp 1-1/4"
Motor power (kW)	1.5	1.5	3
Motor speed(rpm)	1440	1440	1440
Weight(kg)	48	58	72
Dimension(cm)	65×30×28	65×43×29.5	72×43×29.5

Model	SV-160	SV-200	SV-250	SV-300
Rated pumping speed(m³/h)	160	200	250	300
Ultimate pressure(mbar)	0.1	0.1	0.1	0.1
Noise(dB(A))	71	73	73	75
Operating temperature(℃)	65	72	81	83
Oil consumption(L)	5	5	7	7
Water vapor allowable pressure(mbar)	40	40	40	40
Water vapor removal rate(kg/h)	2.5	4	4.5	5
Air inlet(inch)	Rp 2"	Rp 2"	Rp 2"	Rp 2"
Motor power (kW)	4	4.5	5.5	7.5
Motor speed(rpm)	1440	1440	1440	1440
Weight(kg)	157	157	195	211
Dimension(cm)	85.5×49.5×43.5	85.5×49.5×43.5	98×56×44

RSP Series Single-stage Rotary Vane oil-sealed Vacuum Pump (2)

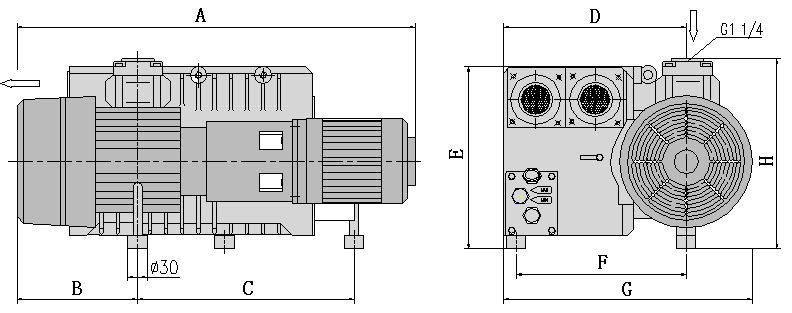

Dimensions	A	B	C	D	E	F	G	H
SV-040	650	150	337	195	270	225	300	280
SV-063	650	150	325	295	285	273	430	295
SV-100	720	180	350	295	285	273	430	295

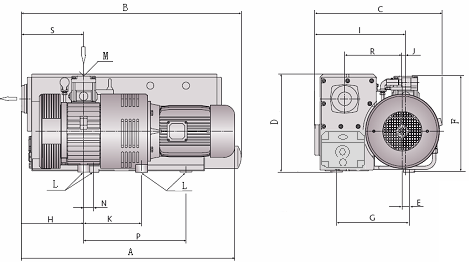

Size	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
SV-160	835	855	495	435	25	425	310	225	345	15	240	4×M10	Rp2”	35	420
SV-200	835	855	495	435	25	425	310	225	345	15	240	4×M10	Rp2”	35	420
SV-250	856	980	560	440	30	430	355	260	385	20	300	4×M10	Rp2”	40	390
SV-300	856	1010	560	440	37.5	430	355	260	385	27.5	300	4×M10	Rp2”	40	390
