UHV rotatable vacuum straight CF Nipple

Short Description:

A length of tube with a fixed flange on one end and a rotatable flange (on CF flanged assemblies) on the other


Product Detail

Product Tags

CF Nipples-Fixed

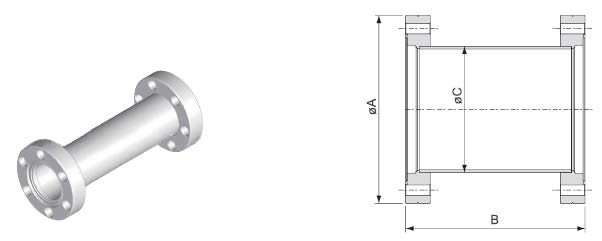

CF Nipple

EVPartNumber. Size A B C Material Order Number
EVN16CF CF16 33.8 76 19.05 304SS C817
EVN35CF CF35 69.5 126 38.1 304SS C818
EVN63CF CF63 113.6 210 63.5 304SS C819
EVN100CF CF100 151.6 270 101.6 304SS C820
EVN150CF CF150 202.5 334 152.4 304SS C821
EVN200CF CF200 253.2 334 203.2 304SS C822

CF Nipples-Fixed Rotatable

EVPartNumber. Size A B C Material Order Number
EVNR16CF CF16 33.8 76 19.05 304SS C823
EVNR35CF CF35 69.5 126 38.1 304SS C824
EVNR63CF CF63 113.6 210 63.5 304SS C825
EVNR100CF CF100 151.6 270 101.6 304SS C826
EVNR150CF CF150 202.5 334 152.4 304SS C827
EVNR200CF CF200 253.2 334 203.2 304SS C828
