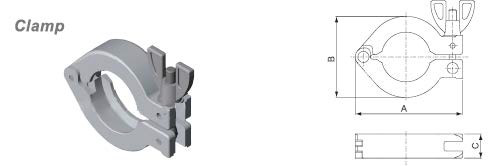

Vacuum fittings Stainless Steel KF Clamp

The typical KF assembly consists of two identical flanges, a centering ring and an aluminum clamp with a wing nut fastener. It can be frequently connected and disconnected without any tools.
The Vacuum is made by uniform pressure of clamp on the flanges. The mating flanges compresses the o-ring to generate the seal.
Blanks, flanges and fittings made from 304 SS material. Clamp is generally aluminum and o-ring made of Viton or NBR.

Also known as Hinge Clamps

Comes with stainless steel eye bolt, washer and wing nut

Require the following to create tight / vacuum seal

Elastomer O-Ring to seal each flange ending

Clamp to fasten each flange ending

Can be heated up to 150°C

Used to build process vacuum plumbing and systems for industrial applications

Used in industry such as Semiconductor, Scientific, R&D & Industrial applications

Fastens KF Flanges of corresponding size

These KF Swing Clamps Aluminium are easy to assemble, easy to clamp and unclamp without tools

Vacuum accessories: pipes, flanges, fittings and adaptor
