High precision HVAC digital Pirani WGC150 Vacuum gauge

Short Description:

WGC-150: The Pinnacle of Vacuum Measurement Control

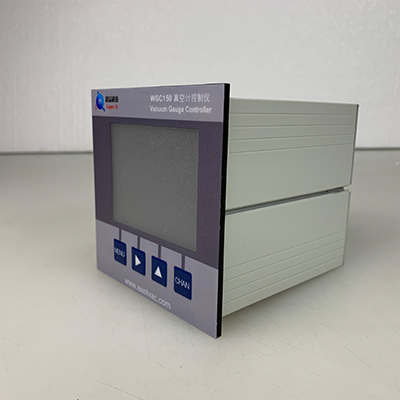

Welcome to the future of vacuum measurement with the WGC-150 All-Intelligent Vacuum Gauge Controller. Engineered for precision and versatility, this state-of-the-art device is the ultimate solution for managing and monitoring vacuum levels across a multitude of applications. With its ability to connect to various brands of vacuum gauges and its intelligent recognition system, the WGC-150 ensures that you have the most accurate and up-to-date information at your fingertips.

Send email to us

Product Detail

Product Tags

Products Description

Model	Product Name	Measuring range

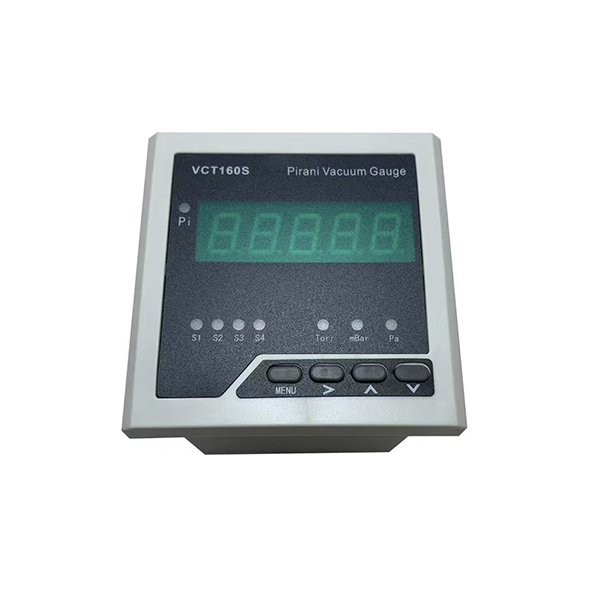

PON100	Pirani Transmitter	1.0E-1 - 1.0E+5 Pa
VCT160	Pirani Vacuum Gauge	1.0E-1 - 1.0E+5 Pa
WPI200	Pirani Digital Display Transmitter	1.0E-1 - 1.0E+5 Pa
WPH300	Pirani Hot Cathode Integrated Digital Display Transmitter	1.0E-5 - 1.0E+5 Pa
WPC400	Pirani Cold Cathode Integrated Digital Display Transmitter	1.0E-5 - 1.0E+5 Pa
YZ2752	Pirani Hot Cathode Compound Vacuum Gauge	1.0E-5 - 1.0E+5 Pa
WGC150	Vacuum Gauge Controller	1.0E-5 - 1.0E+5 Pa

WGC-150: The Pinnacle of Vacuum Measurement Control

* Multi-Gauge Connectivity

Connects with up to four different vacuum gauges.

* Smart Gauge Recognition

Automatically identifies and adjusts to the specifications of each gauge.

* Advanced Data Processing

Utilizes sophisticated algorithms for precise data acquisition.

* User-Friendly Interface

Easy-to-use membrane buttons and a clear LCD display for real-time monitoring.

* Robust Communication

Supports RS485 protocol for digital and analog signal output.

* Flexible Control

Features four control relay outputs for dynamic process management.

The WGC-150 is more than just a controller; it's a comprehensive system designed to meet the rigorous demands of modern vacuum measurement.

Product Paramenters

Parameters	Technical Data
Accuracy	Controller accuracy: 0.1% Transmitter accuracy depends on the type of gauges
Repeatability	±1%
Applicable Gauge	All Super Q vacuum gauges Other brands of vacuum gauges with analog output
Input Channel	Four input channels can be connected to one, two, three or four vacuum gauges
Display	3.5 " TFT-320x240 LCD up to four lines of vacuum measurement information
Operation Key	Four membrane buttons for multiple intelligent operations
Communication	RS485 communication Protocol: 9600, 1, 8, 1, none
Control Setpoint	Four solid state relay each with a maximum load of 60VDC/500mA.
Analog Output	Two 12bit analog voltage outputs from 0 to + 10.0vdc The voltage output equation can be customized according to the needs of users
Power Supply	85 ~ 265vac 0.5A power consumption less than 30W
Environment	Storage: -25 ℃ ~ +55 ℃ Operating: +5 ℃ ~ +45 ℃ Relative humidity: 35% - 85%
Weight	620g (without cable)

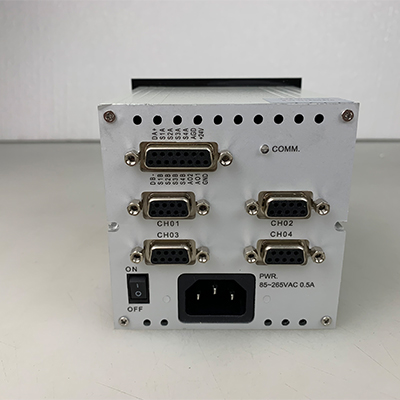

Dimensions	98×98×110 Cutting hole for installation: 92×92

Learn more about discounts

Product features

■ Intuitive Multi-Gauge Integration The WGC-150 stands out with its ability to seamlessly connect with a variety of vacuum gauge brands, offering a comprehensive solution for obtaining vacuum level readings. With a capacity to interface with up to four vacuum gauges simultaneously, it ensures a versatile and adaptable measurement experience. ■ Smart Vacuum Gauge Recognition Experience the convenience of our intelligent vacuum gauge recognition feature, which automatically identifies the model and range of the connected vacuum gauges. This smart feature streamlines the setup process and ensures accurate data acquisition. ■ Advanced Data Processing Leverage the power of our advanced algorithms to read and process data from your vacuum gauges. The WGC-150 not only collects data but also interprets it, providing you with reliable and precise measurements. ■ User-Friendly Interface Navigate through system settings effortlessly with our four membrane buttons, designed for quick and intuitive operation. The user interface is both accessible and straightforward, making system management a breeze.

■ Vivid Visualization

Monitor your vacuum parameters in real-time with our 3.5-inch color LCD display. This feature allows for simultaneous four-channel viewing, ensuring you have all the information you need at a glance.

■ Robust Communication Capabilities
Stay connected with our RS485 communication protocol, which supports both digital and analog signal outputs. This ensures that the WGC-150 can integrate seamlessly with a wide range of systems and devices.

■ Flexible Control Signals

With the ability to support four control relay output signals, the WGC-150 offers precise control over your vacuum processes. This feature provides the flexibility to manage and adjust your system's operation with ease.

Industrial Process Control:

The WGC-150 is an essential tool for industries that require precise vacuum control, where vacuum is used to improve the efficiency of chemical reactions and the quality of the final product. Research and Development: This device is suitable for laboratory environments where accurate vacuum measurements are crucial, such as in the development of new materials or in the study of physical phenomena that are influenced by pressure variations.

Semiconductor Manufacturing: The WGC-150 is well-suited for the semiconductor industry, where it can be used to control the vacuum environment in processes such as plasma etching and deposition, which are critical for chip fabrication.

Food and Beverage Packaging:

In the food and beverage industry, the WGC-150 can be employed to control the vacuum levels in packaging machinery, ensuring that products are sealed properly and maintain their freshness and shelf life.

The WGC-150 All-Intelligent Vacuum Gauge Controller is designed to be a dependable workhorse in your vacuum measurement setup.

With its ability to connect with a variety of vacuum gauges, smart gauge recognition, and robust communication protocols, it offers a practical solution for obtaining accurate vacuum readings and managing your vacuum processes efficiently.

The user-friendly interface and real-time monitoring capabilities ensure that you have the tools you need to maintain optimal vacuum levels with ease.

Whether for industrial, laboratory, or specialized applications, the WGC-150 is the reliable choice for your vacuum measurement and control needs.

We also provide high-quality vacuum accessories, vacuum valves, vacuum pumps, and customized services for vacuum chambers. Due to the large number of products that cannot be listed one by one, please contact the customer for consultation.
