High vacuum WPC400 KF16/25 Pirani vacuum gauge vacuum sensor
Specification
|
item
|
Pirani/cold cathode wide range vacuum gauge
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Beijing
|
|
|
Brand Name
|
Super Q
|
|
Model Number
|
WPC-400
|
|
Product Name
|
Pirani/cold cathode wide range vacuum gauge
|
|
Material
|
SS316L, tungsten, kovar alloy, quartz/glass
|
|
Application
|
Measurement and control of ultra-high vacuum range
|
|
Connection
|
KF 16
|
|
Accuracy
|
±20%
|
|
Type
|
Pirani/cold cathode vacuum gauge
|
|
Measuring Range
|
1.0E-1 ~1.0E+5 Pa
|
|
Feature
|
High Accurancy/analog output/digital output
|
Products Description
|
Model
|
Product Name
|
Measuring range
|
|
PON100
|
Pirani Transmitter
|
1.0E-1 - 1.0E+5 Pa
|
|
VCT160
|
Pirani Vacuum Gauge
|
1.0E-1 - 1.0E+5 Pa
|
|
WPI200
|
Pirani Digital Display Transmitter
|
1.0E-1 - 1.0E+5 Pa
|
|
WPH300
|
Pirani Hot Cathode Integrated Digital Display Transmitter
|
1.0E-5 - 1.0E+5 Pa
|
|
WPC400
|
Pirani Cold Cathode Integrated Digital Display Transmitter
|
1.0E-5 - 1.0E+5 Pa
|
|
YZ2752
|
Pirani Hot Cathode Compound Vacuum Gauge
|
1.0E-5 - 1.0E+5 Pa
|
|
WGC150
|
Vacuum Gauge Controller
|
1.0E-5 - 1.0E+5 Pa
|

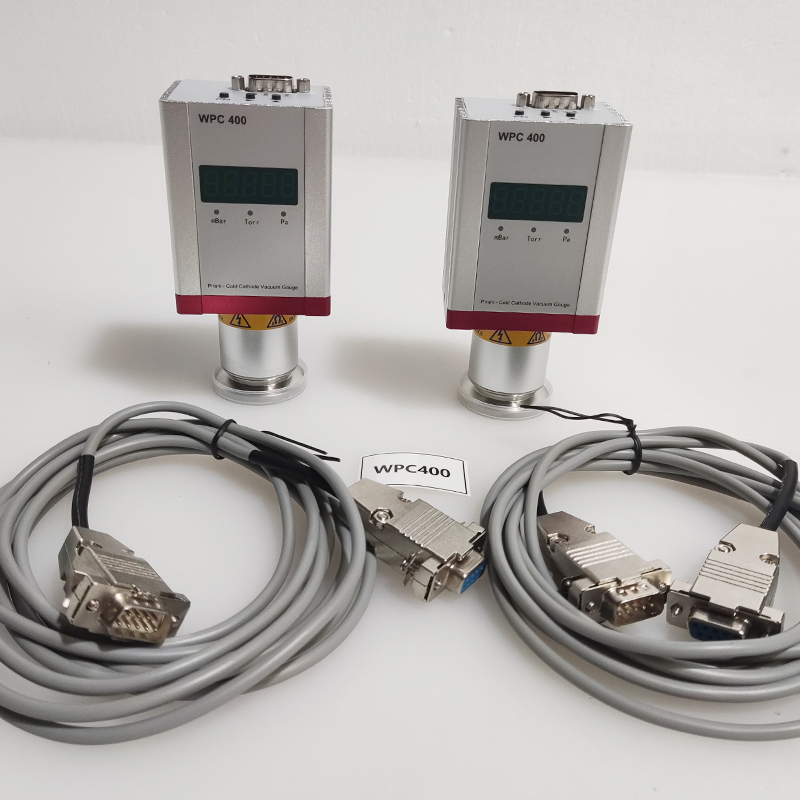

WPC-400 Pirani/ Cold Cathode intelligent vacuum gauge
Explore the precision of the WPC-400, a cutting-edge Pirani/Cold Cathode vacuum gauge Broad Measurement Range:
From atmospheric pressure to an impressive 1.0E-5 Pa, suitable for a diverse range of applications.
Advanced Technology:
Experience seamless transitions between Pirani and ion cold cathode sensors, ensuring accurate readings across the entire measurement range.
Multi-Functionality:
Integrated sensing, display, and control in one compact unit for streamlined operation.
Flexible Connectivity:
Benefit from analog output, RS485, and wireless data transmission options for versatile data management.
Elevate your vacuum measurement experience with the WPC-400
– where precision meets simplicity.
Product Paramenters
|
Parameters
|
Technical Data
|
|
Measurement Range
|
1.0 E-5 ~1.0 E+5 Pa (Air, N2)
|
|
Accuracy
|
1.0E-5 〜1.0E- 4 Pa :±35%
1.0E-4 ~1.0E+4 Pa :±25%
1.0×10+4 ~1.0×10+5 Pa : ±50%
|
|
Repeatability
|
1.0×10-5 ~1.0×10+3 Pa : ±5%
1.0×10+3 ~1.0×10+5 Pa : ±25%
|
|
Pressure withstand
|
Max. 1.5×10+5 Pa
|
|
Response Time
|
< 100 ms
|
|
Working Environment
|
0º C ~ +45º C； 5 ~ 85 %, No Condensation
|
|
Storage Environment
|
-40º C ~ +75º C；5 ~ 90 %, No Condensation
|
|
Signal Output
|
5-digit LED Display, Unit Optional
|
|
Dual Setpoint Control Relay Output, 60VDC 0.5A
|
|
|
RS485, 9600 bps, Modbus RTU
|
|
|
Analog Output +0.0V〜+10.0VDC
|
|
|

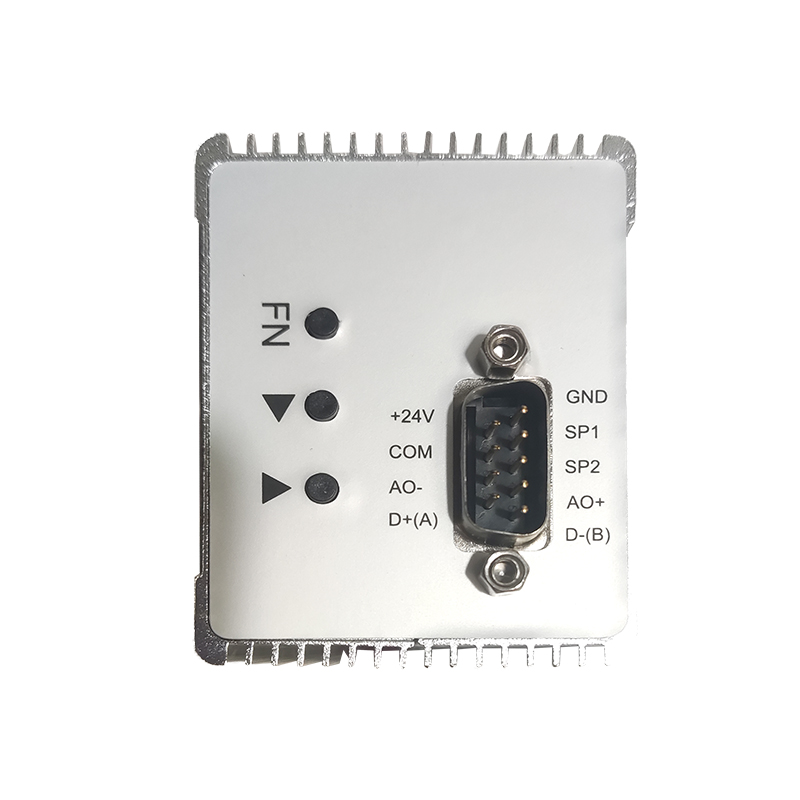

Electrical Interface
|
DSub9 Male Socket
|
|
Power Supply
|
+16〜+32 VDC /0.5A ; Max. 2.5W
|
|
Protection
|
IP40, IEC529
|
|
Vacuum Flange
|
Standard DN 25 ISO-KF ； Others to be Customized
|
|
Weight and Size
|
420g (KF25), 174.5H×61L×49W
|
|
Materials in Vacuum
|
SS304, Kovar Alloy, Tungsten, Glass
|
Learn more about discounts
Product features
■ Environmental Temperature Compensation Built-in sensor for accurate temperature compensation. ■ Smart Operation Easy calibration and settings for control points and measurement units. ■ System Integration 16-bit dial address setup for streamlined networking. ■ Communication Capability Digital and analog outputs supported, with RS485 communication. ■ Remote Monitoring Optional wireless data transmission up to 100 meters.
Application
The WPC400 is a wide-range vacuum gauge with integrated Pirani and cold cathode sensors, seamlessly transitioning between pressure measurements from atmospheric to 1.0E-5 Pa. It combines sensing, display, and control in one compact unit, offering analog output, RS485, and wireless data transmission capabilities.
We also provide high-quality vacuum accessories, vacuum valves, vacuum pumps, and customized services for vacuum chambers. Due to the large number of products that cannot be listed one by one, please contact the customer for consultation.
